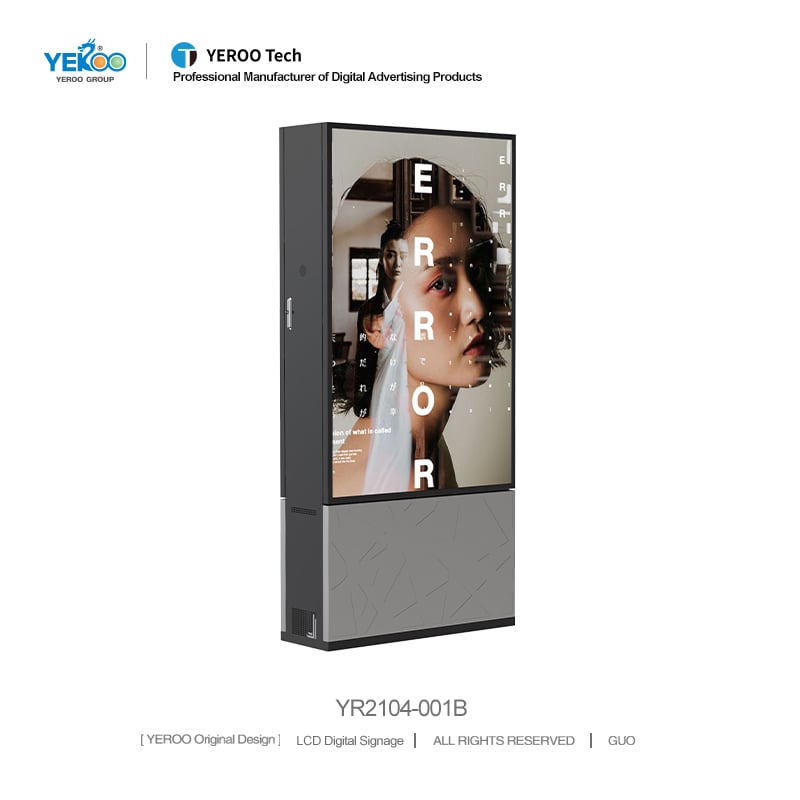

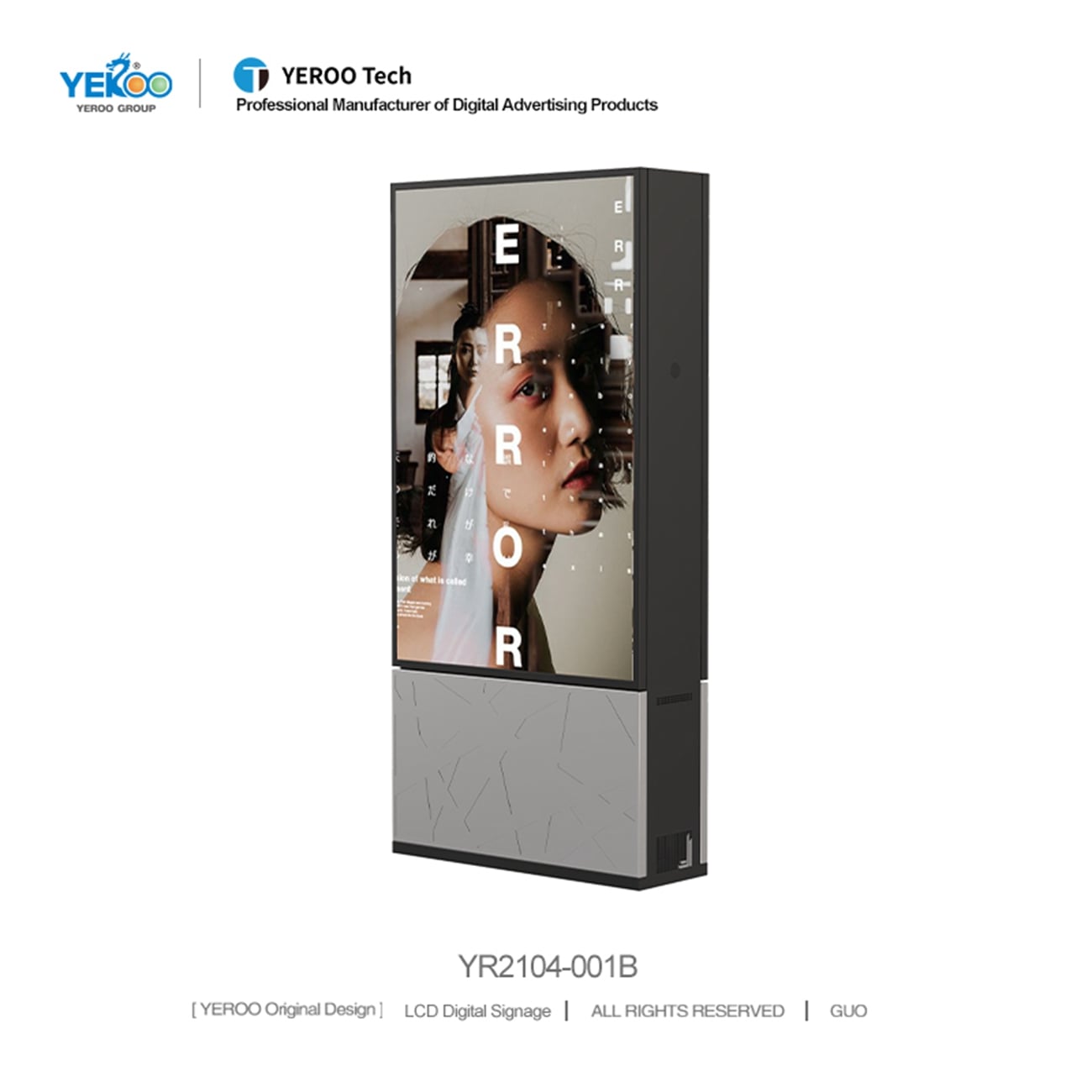

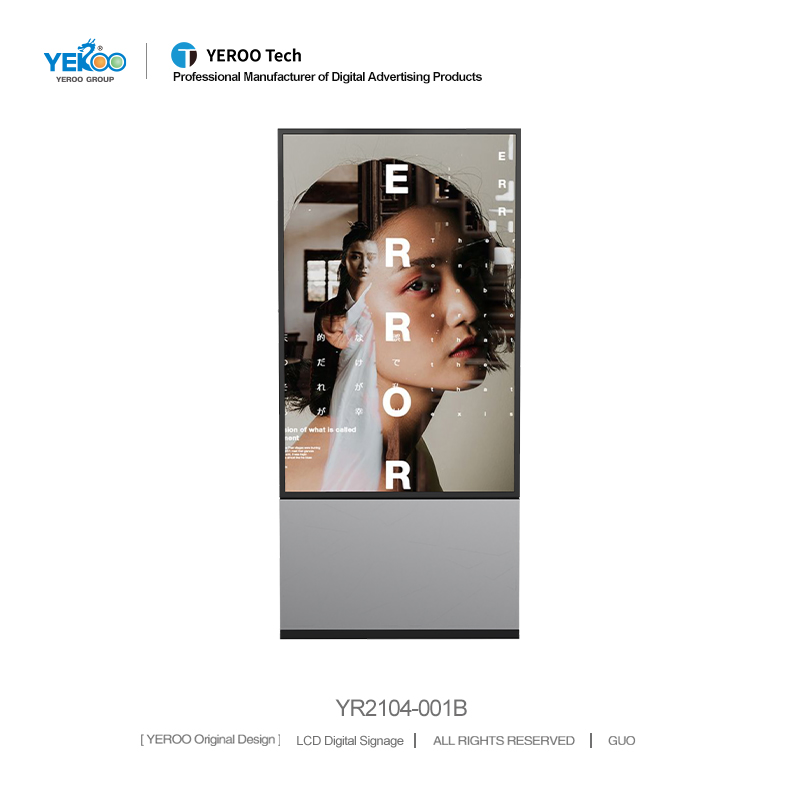

LCD Advertising Display- YR2104-001B
Producing robust LCD advertising displays with 178° wide viewing angles and <5ms response time. Aluminum alloy enclosures with cooling fans ensure reliable performance. Includes content management system support for remote updates. Brands measure 40% higher engagement versus static displays. Request CMS demo and engagement reports.

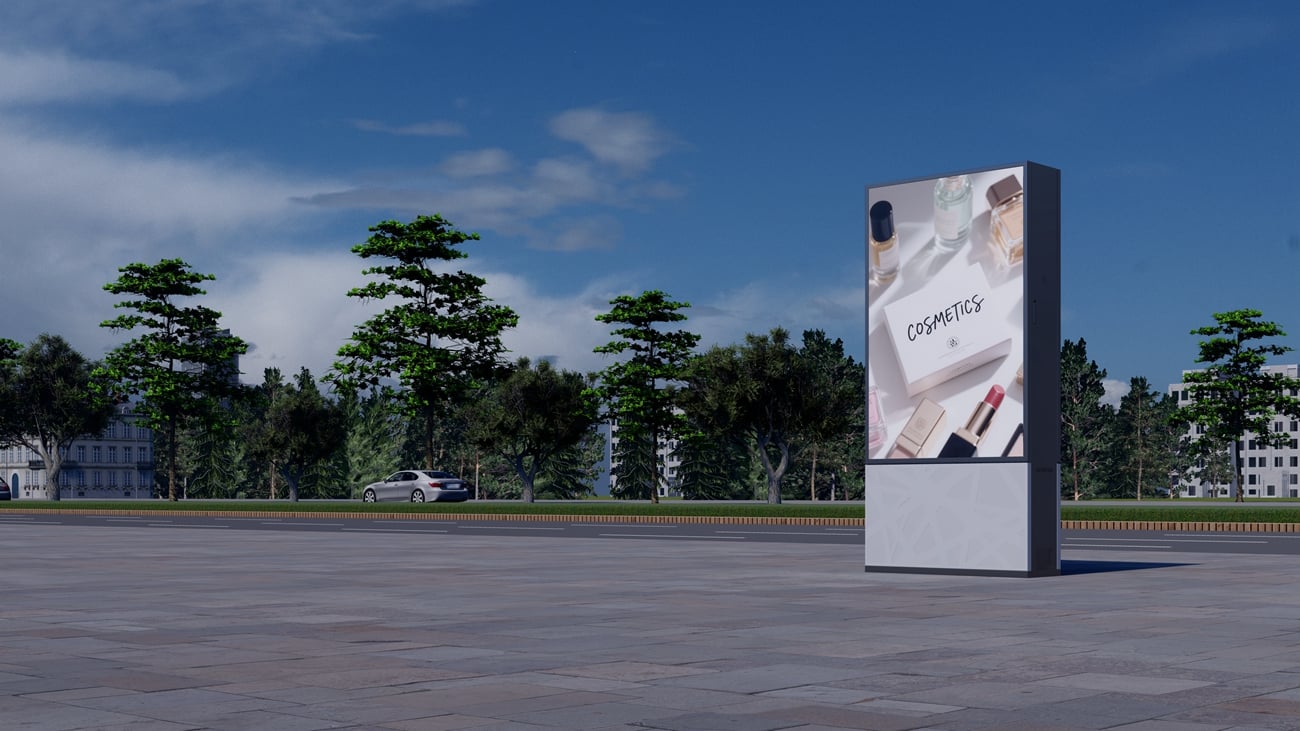

Our LCD totem with full-height advertising visibility. Constructed with 2mm galvanized steel and vandal-resistant glass. Suitable for narrow spaces in malls, airports, and conference centers. Custom heights from 1.8m to 3.2m available. Ask about totem installation case studies.
- Overview
- Recommended Products
Producing robust LCD advertising displays with 178° wide viewing angles and <5ms response time. Aluminum alloy enclosures with cooling fans ensure reliable performance. Includes content management system support for remote updates. Brands measure 40% higher engagement versus static displays. Request CMS demo and engagement reports.
Our LCD totem with full-height advertising visibility. Constructed with 2mm galvanized steel and vandal-resistant glass. Suitable for narrow spaces in malls, airports, and conference centers. Custom heights from 1.8m to 3.2m available. Ask about totem installation case studies.
| Pruduct name | LCD Advertising Display | ||||||
| Material | Metal case+ Ultra Clear Glass | ||||||
| Panel | Size | 32inch | 43inch | 49inch | 55inch | 65inch | 75inch |
| Display area | 697*392mm | 941×529mm | 1074*604mm | 1210×681mm | 1433*808mm | 1650×930mm | |
| Display scale | 16：9 | 16：9 | 16：9 | 16：9 | 16：9 | 16：9 | |
| Maximum resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840*2160 | |
| Brightness | 2500cd/m² | 2500cd/m² | 2500cd/m² | 2500cd/m² | 2500cd/m² | 2500cd/m² | |
| Contrast ratio | 1400：1 | 1400：1 | 1400：1 | 1400：1 | 1400：1 | 1400：1 | |
| Visual angle | 178° | 178° | 178° | 178° | 178° | 178° | |
| Working hours | 7*24Hrs | 7*24Hrs | 7*24Hrs | 7*24Hrs | 7*24Hrs | 7*24Hrs | |
| Work environment | Operation temperature | -25~50℃ | -25~50℃ | -25~50℃ | -25~50℃ | -25~50℃ | -25~50℃ |
| Working humidity | -30°C~+60℃ | -30°C~+60℃ | -30°C~+60℃ | -30°C~+60℃ | -30°C~+60℃ | -30°C~+60℃ | |
| Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | |
| Other | Cooling system | Android with content manage software (Windows without software optional) | |||||
| Operating system | Fan cooling(AC cooling optional) | ||||||
| Touch type | No touch/ metal mesh touch(optional) | ||||||
| Accessories | Andorid with remote-controller*1,Key*2,Power supply cable | ||||||
